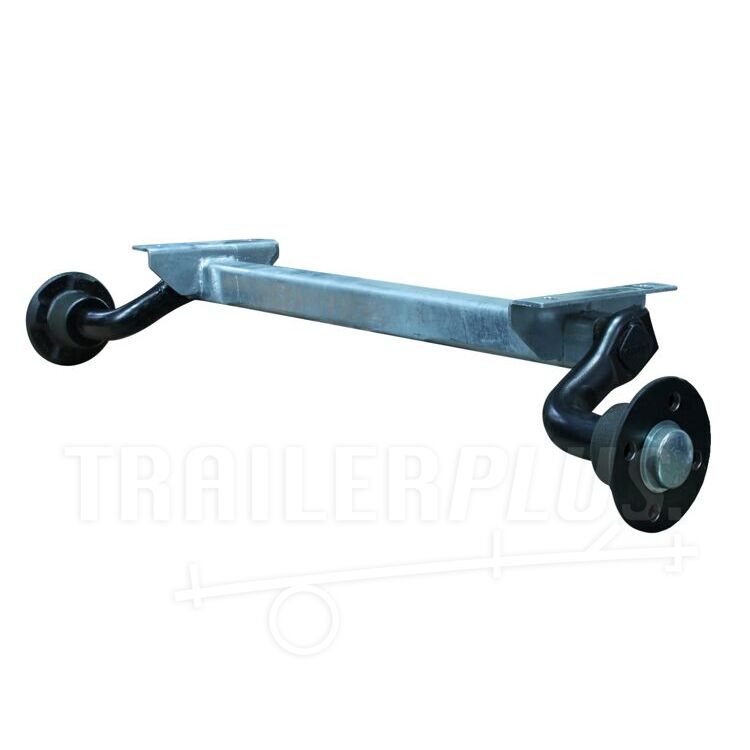

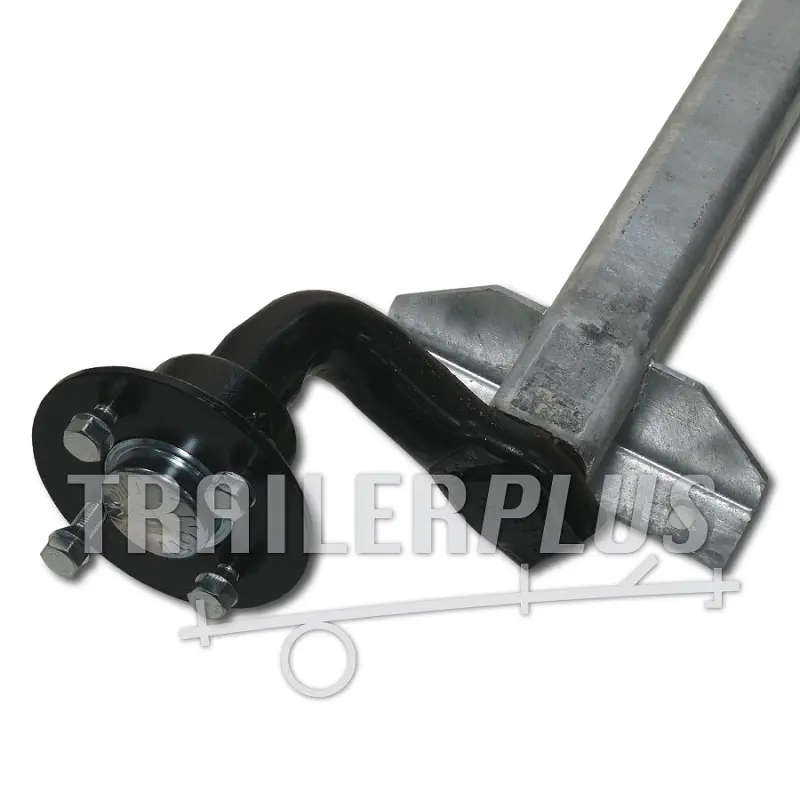

VG7 750kg 770mm 28°

€ 251,99

€ 239,99 Include VAT

Stock

Delivery time 1 - 4 business days

Klarna Mastercard Visa PayPal

Version/Size: Torsion Axle Knott
Brand: Knott
Type: VG7
Strength Max: 750 kg
Mounting Dimensions: 4 hole connection 100 x 4 (Opel).
Other: Note flange size is different!!
Pad Size: 770mm (W)
Flange Size: 1140mm (C)
Recommended Rim: 4 1/2 Jx 13"
Recommended tyre: 155R13 165R13

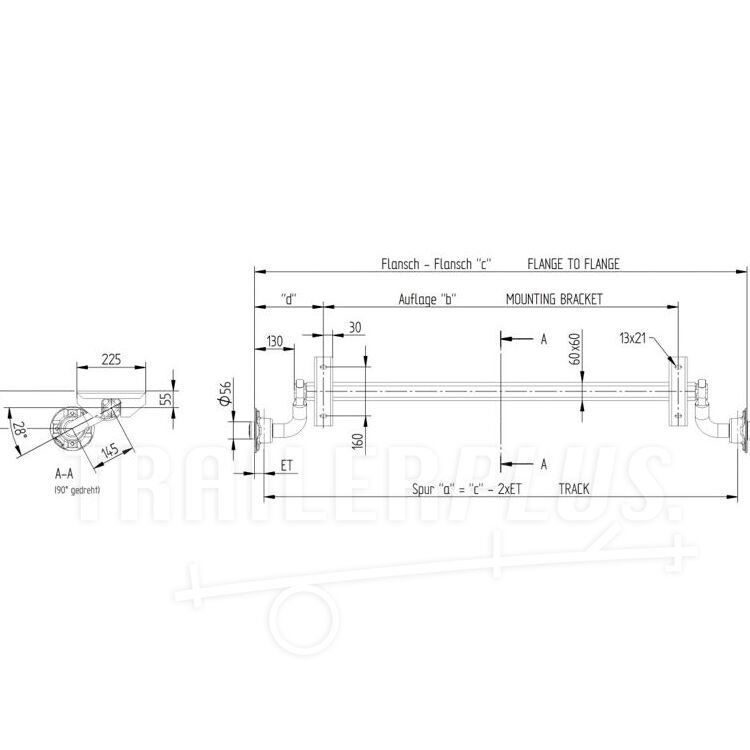

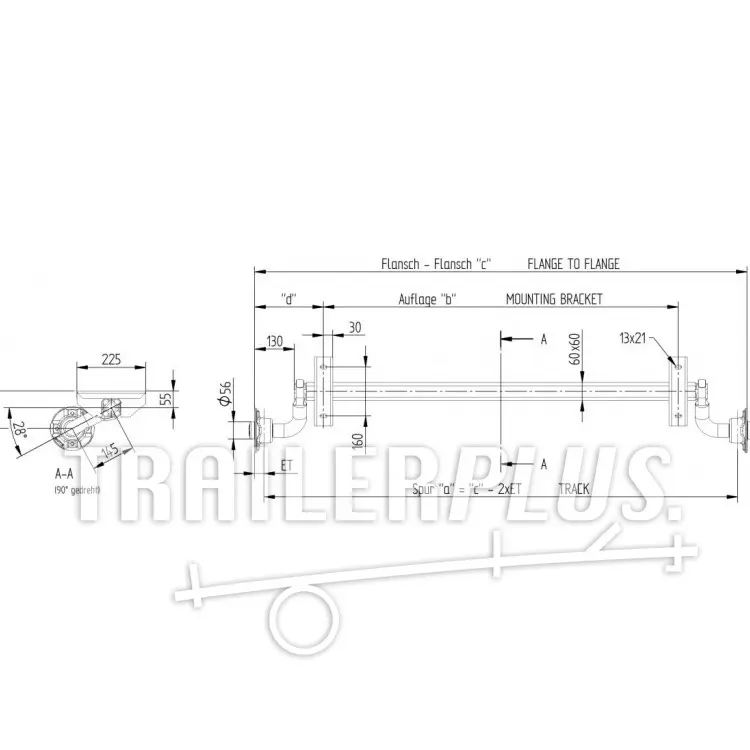

Other: The plate with which the axle is mounted under the box is 60 mm (F) x 225 mm (K) the mounting holes (I) are center to center 160 mm apart. The size of the slotted holes is 13 x 21 mm. The axle body of a Knott 750 kg axle is square 60 mm. Suitable for rims with a curvature (ET value) of 0-45 mm. Difference between flange size and pad size on this axle is 370 mm.

Axle type: VG7
Suspension system: Rubber suspension
Capacity: 750kg
Pad size: 770mm
Flange size: 1140mm
Wheel connection: 100x4
Spring arm: Solid
Spring arm length: 145

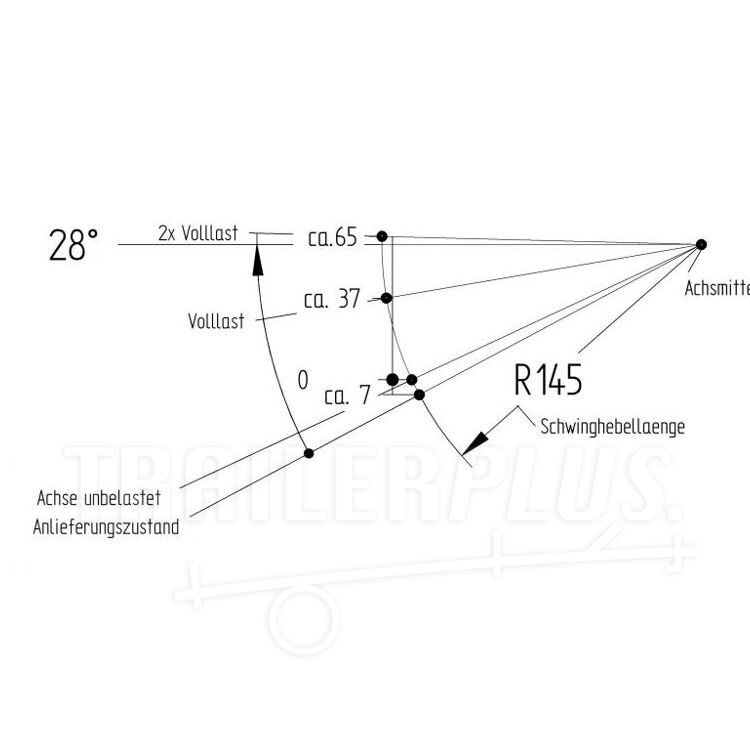

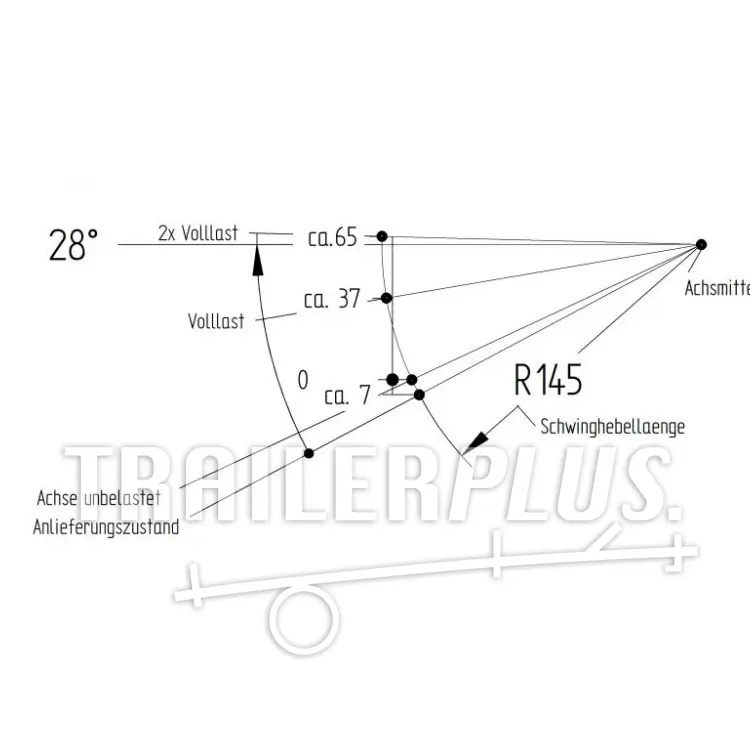

Spring arm position in degrees: 28?
Bearing: Compact Bearing
Surface Treatment: Galvanized

axles are delivered incl. wheel bolts

torsion shaft information

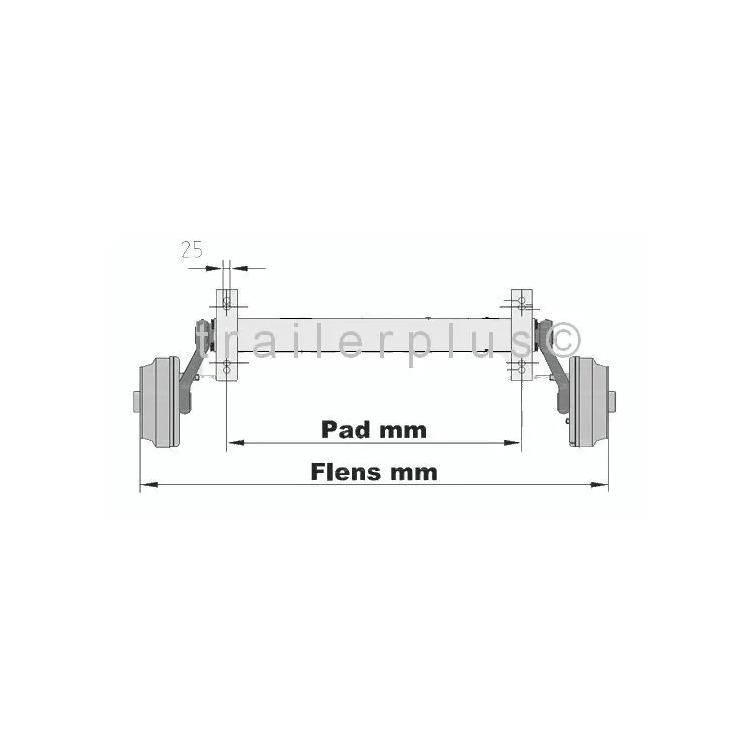

click here for more explanation about pad size/flange size alle Knott onderdelen, van as tot remkabel

  • ProductcodeK0770
  • Brand Knott
  • Capacit 750 kg
  • Flange size 1140 mm
  • Pad size 770 mm
  • Axle type VG7-L
  • Wheel connection 100 x 4
  • Professional quality
  • Easy assembly
  • Properly packaged
