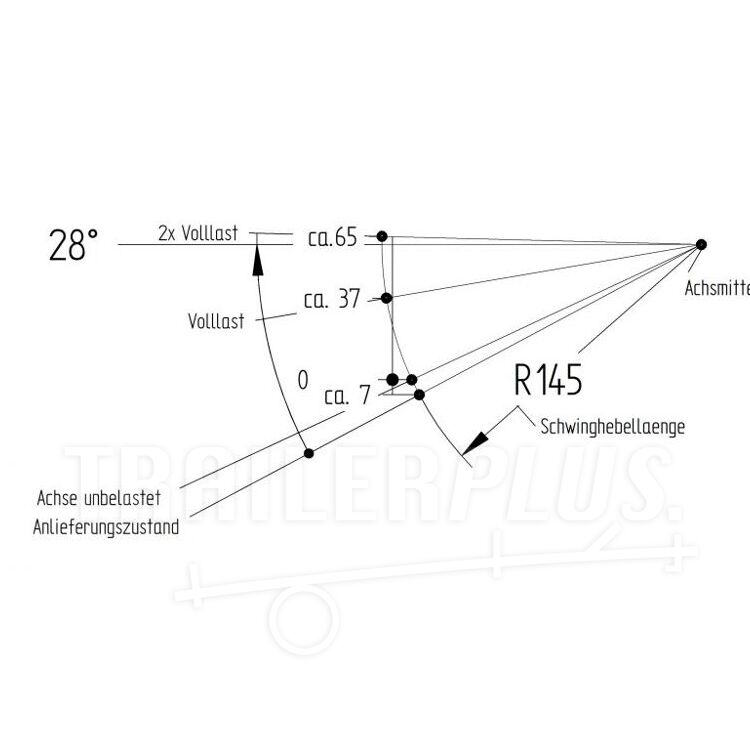

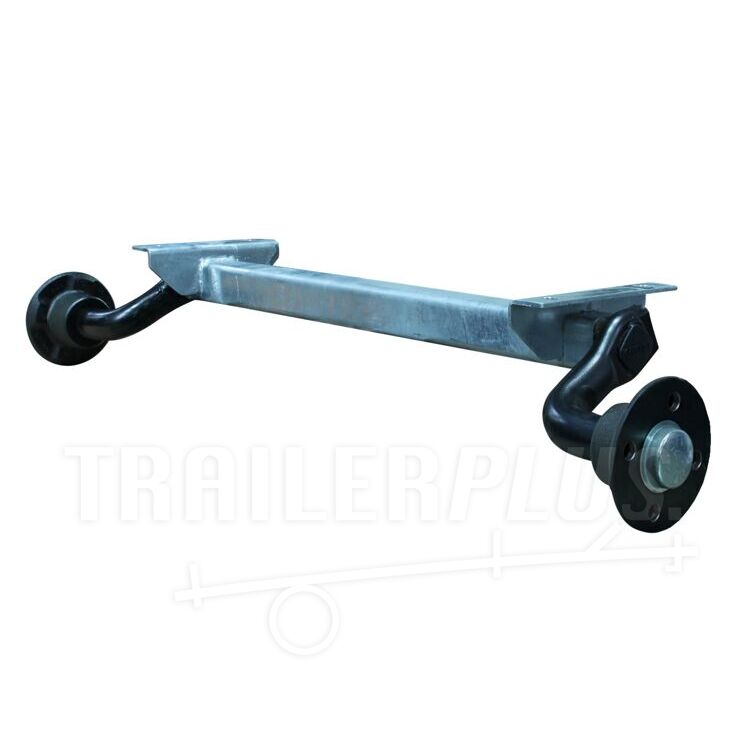

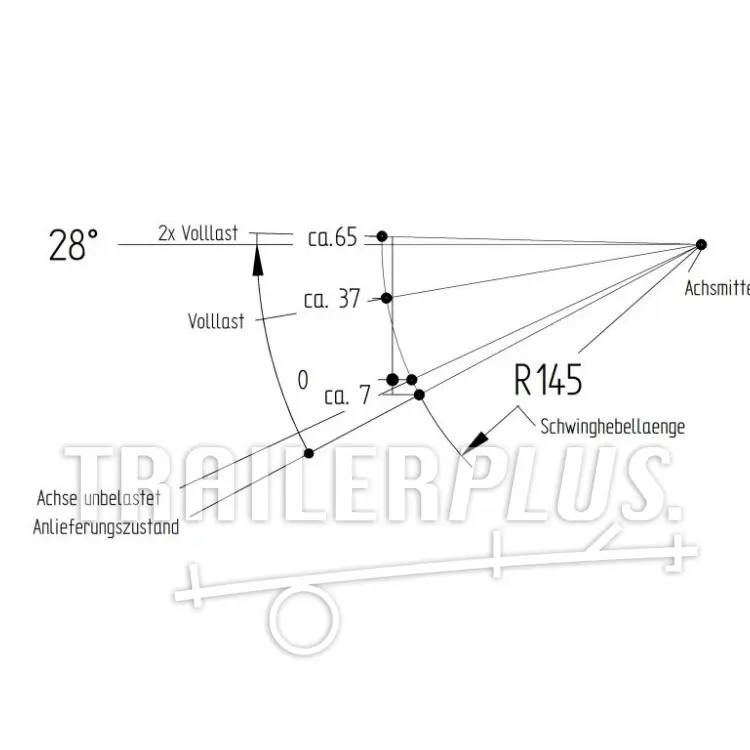

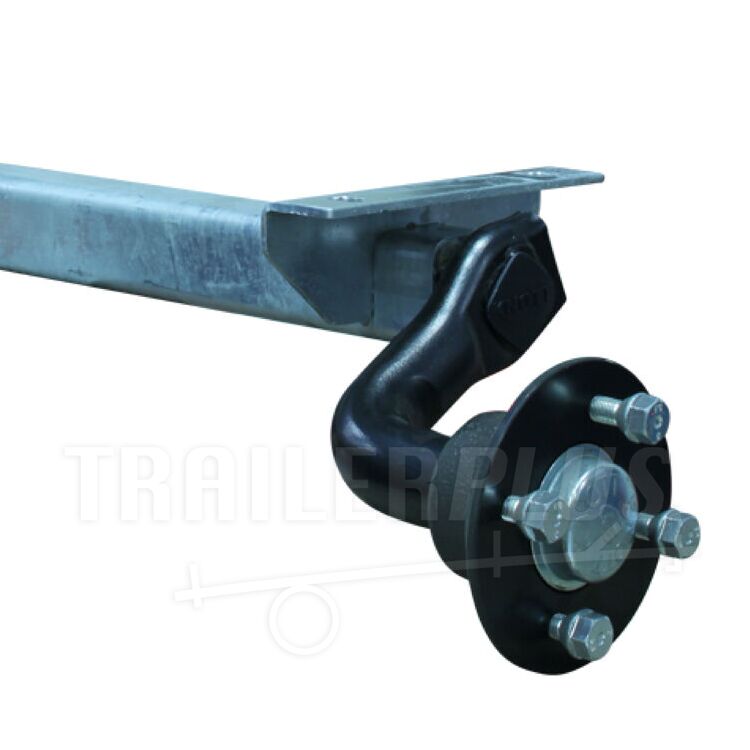

VG7-L 750kg 1100mm 28°
€ 251,99
€ 239,99 Include VAT
Stock
Delivery time 1 - 4 business days
Version/Size: Torsion Axle Knott
Brand: Knott
Strength Max: 750 kg
Mounting Dimensions: 4 hole connection 100 x 4 (Opel).
axles are delivered incl. wheel bolts

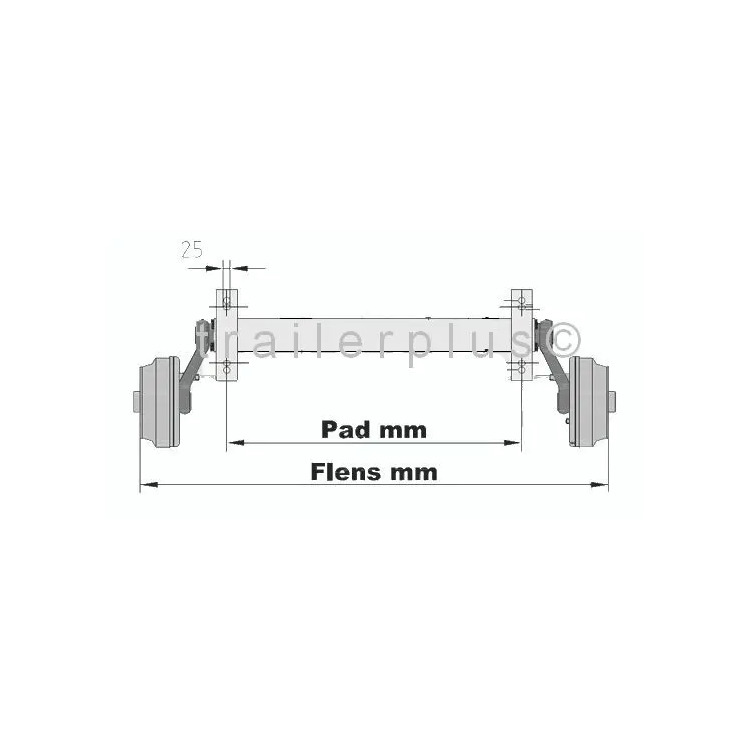

Pad Size: 1100mm (W)
Flange Size: 1550mm(C)
Recommended rim: 4 1/2 Jx 13"
Recommended tyre: 155R13 165R13

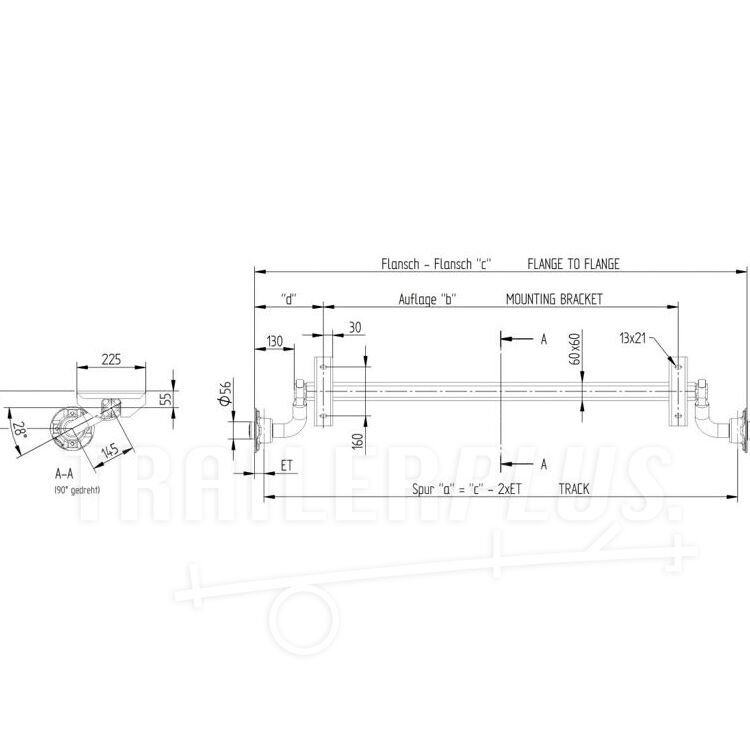

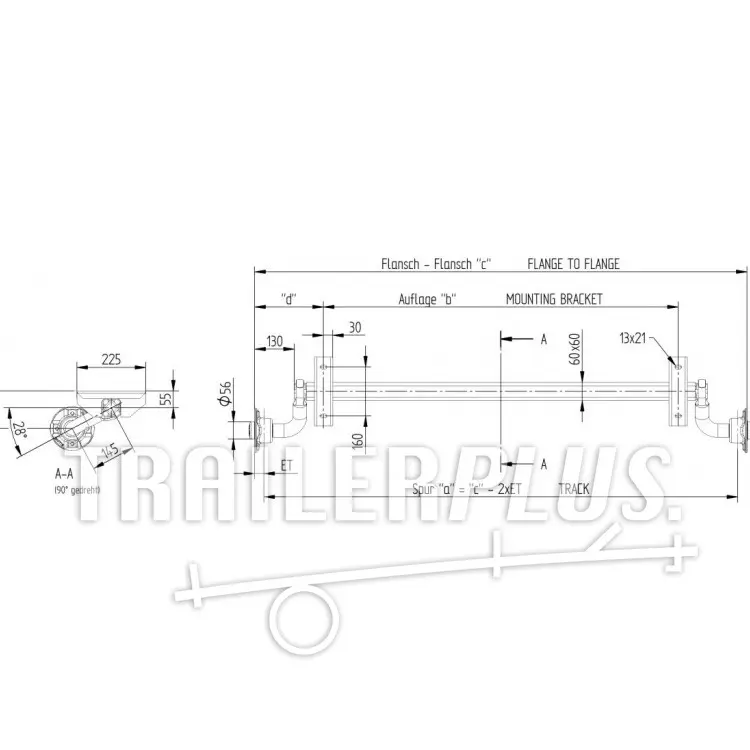

The plate with which the axle is mounted under the box is 60 mm (F) x 225 mm (K) the mounting holes (I) are center to center 160 mm apart. The size of the slotted holes is 13 x 21 mm. The axle body of a KNOTT 750 kg axle is square 60 mm. Suitable for rims with a curvature (ET value) of 0-45 mm. Difference between flange size and pad size with this shaft is 450 mm
- ProductcodeK1100
- Brand Knott
- Capacit 750 kg
- Flange size 1550 mm
- Pad size 1100 mm
- Axle type VG7-L
- Wheel connection 100 x 4
- Professional quality
- Easy assembly
- Properly packaged
