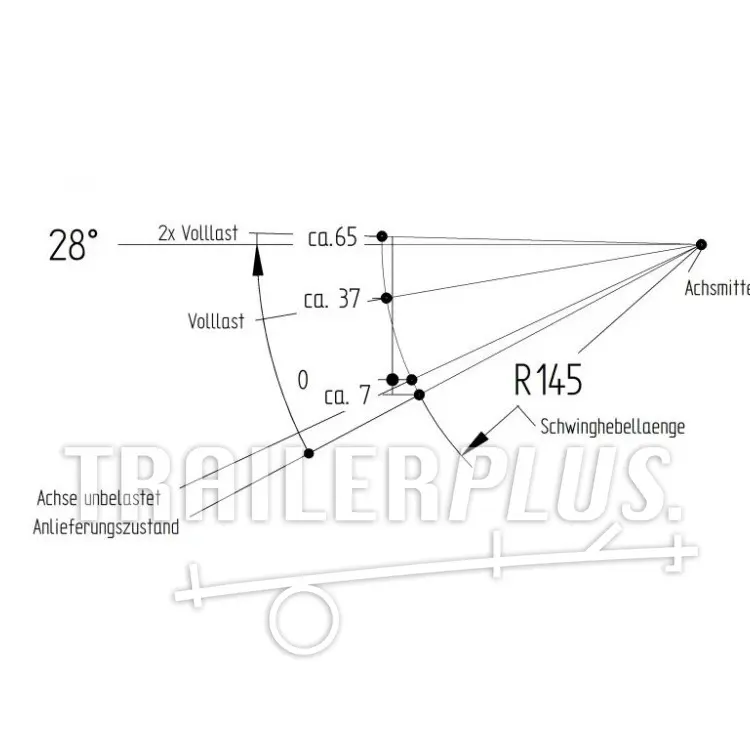

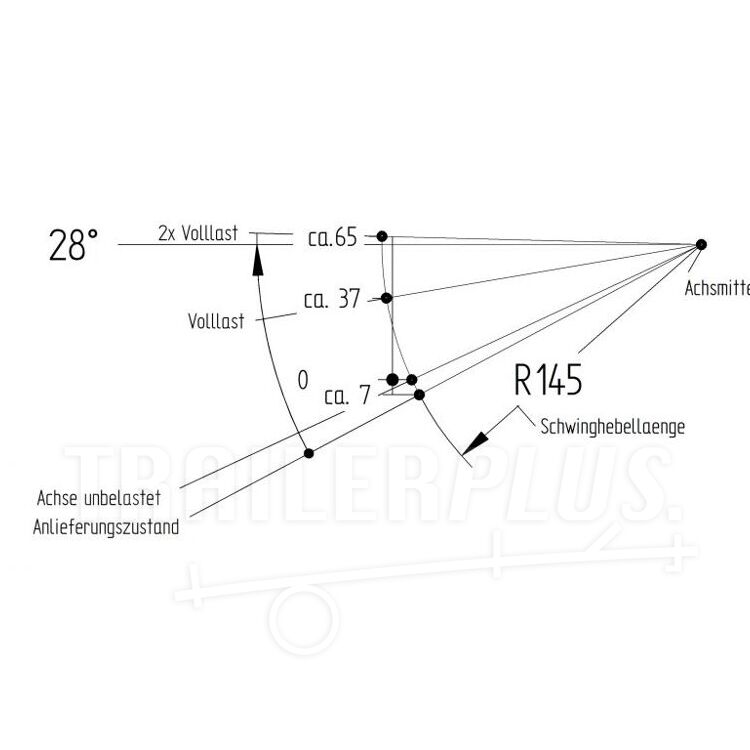

VG7-L 750kg 1150mm 28°

€ 249,91

€ 238,01 Incl. VAT

Stock

Delivery time 1 - 4 business days

Veilig betalen met PayPal Veilig betalen met Mistercash Veilig betalen een overboeking Veilig betalen een Creditcard

Version/Size: Torsion shaft unbraked Knott
Brand: Knott

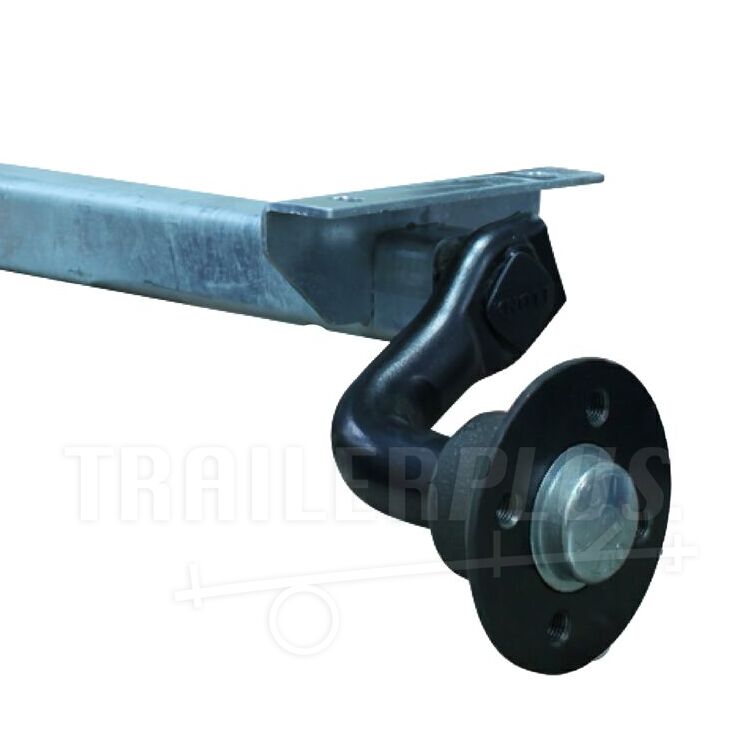

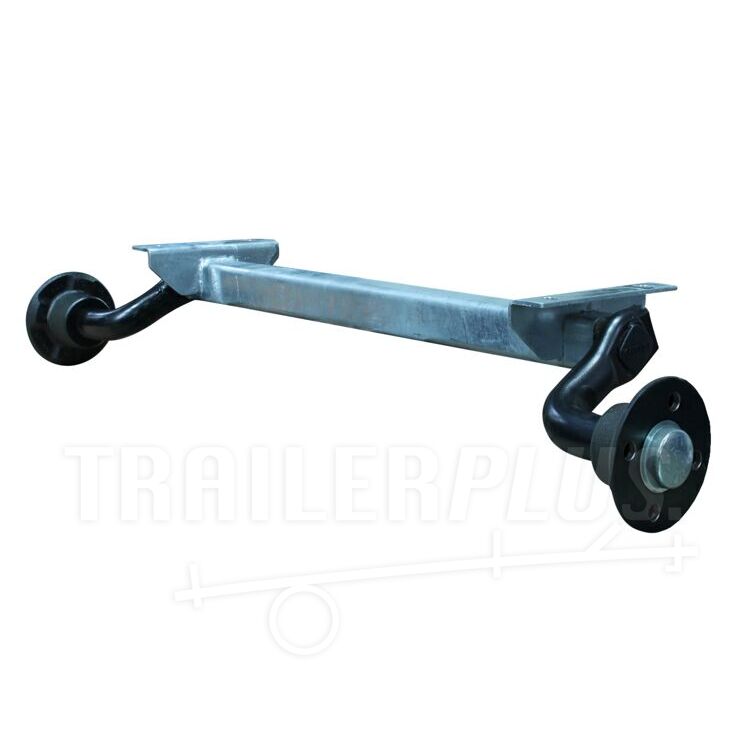

Type: VG7-l 750 kg unbraked torsion axle for trailer
Strength Max: 750 kg
Mounting Dimensions: 4 hole connection 100 x 4 (Opel)
Material: Galvanized ash body
Other: Note flange size is different!!

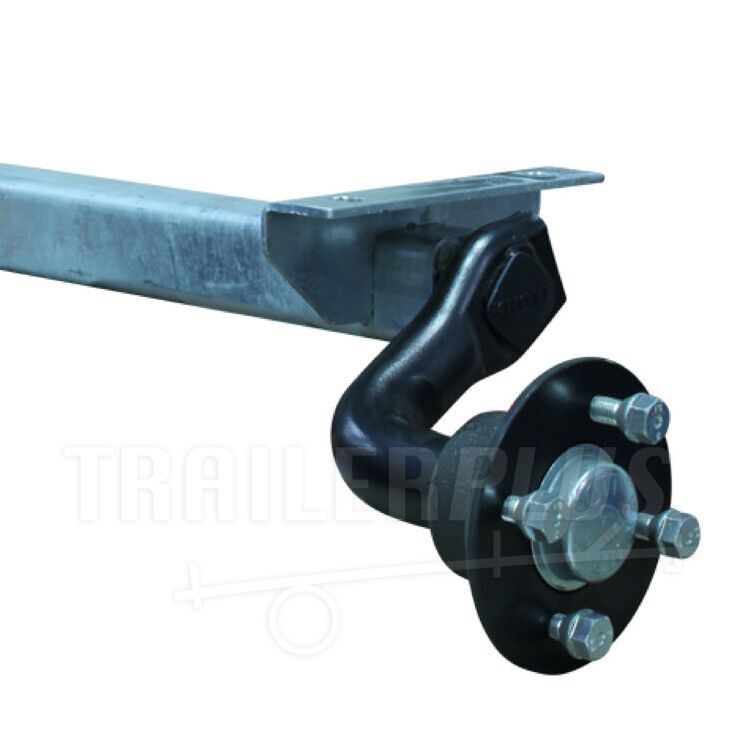

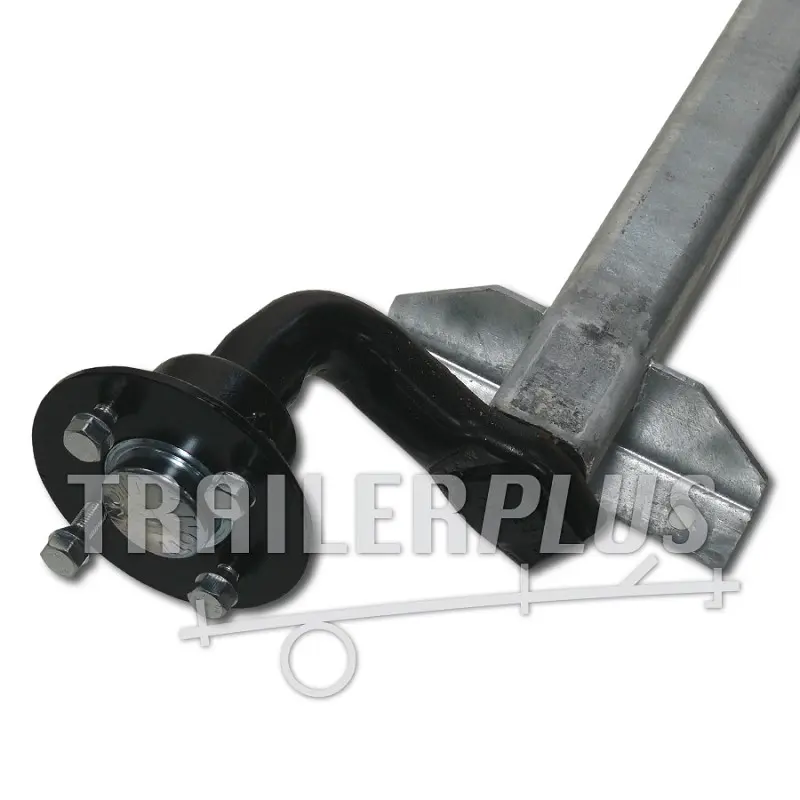

axles are delivered incl. wheel bolts

Pad size: 1150mm (W)
Flange Size: 1520mm (C)
Recommended rim: 4 1/2 Jx 13"
Recommended tire: 155R13 165R13.

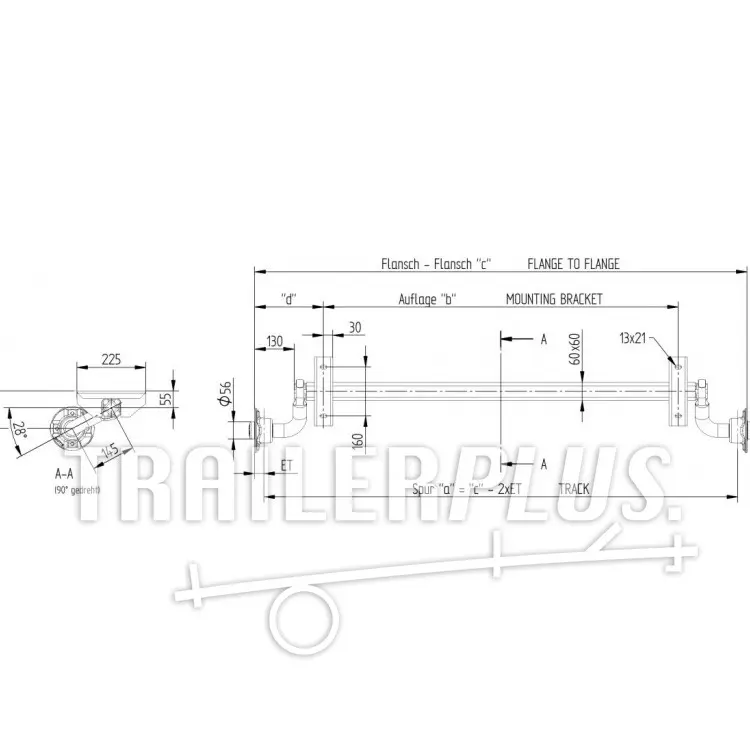

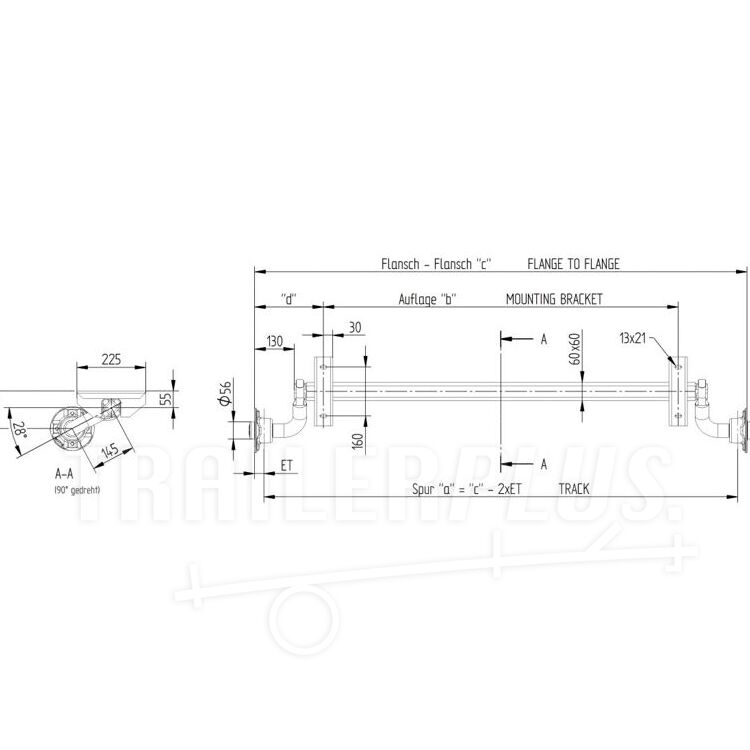

The plate with which the axle is mounted under the box is 60 mm (F) x 225 mm (K) the mounting holes (I) are center to center 160 mm apart. The size of the slotted holes is 13 x 21 mm.
The axle body of a Knott 750 kg axle is square 60 mm.
Suitable for rims with curvature (ETA value) of 0-45 mm.

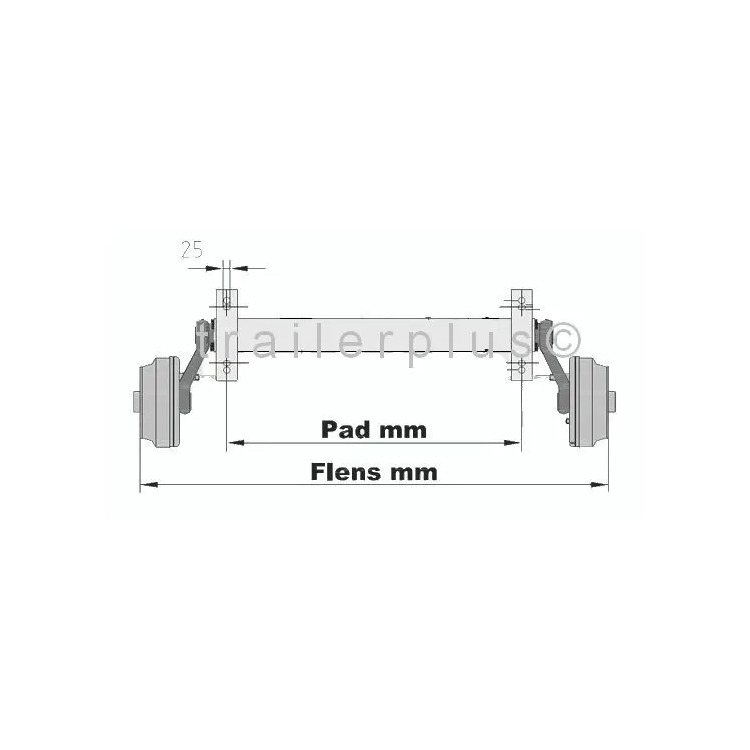

Difference between flange size and pad size with this shaft is 370 mm

torsion shaft information

click here for more explanation about pad size/flange size a alle Knott onderdelen, van as tot remkabel

  • ProductcodeK1150
  • Brand Knott
  • Capacit 750 kg
  • Flange size 1520 mm
  • Pad size 1150 mm
  • Axle type VG7-L
  • Wheel connection 100 x 4
  • Professional quality
  • Easy assembly
  • Properly packaged
